Foot Reduction LCP
Overview

Part Number: 1600-3612 ~ 1600-7612 (F1295)  6600-3612 ~ 6600-7612 (F138)

Foot Reduction LCP

The SurgTech Trauma System is a plate and screw fixation system. Plates and screws are offered in “mini”,“small” and “large” set sizes in a variety of shapes based upon the anatomical fixation required.

TC20: New Material Without Vanadium Trouble



Features

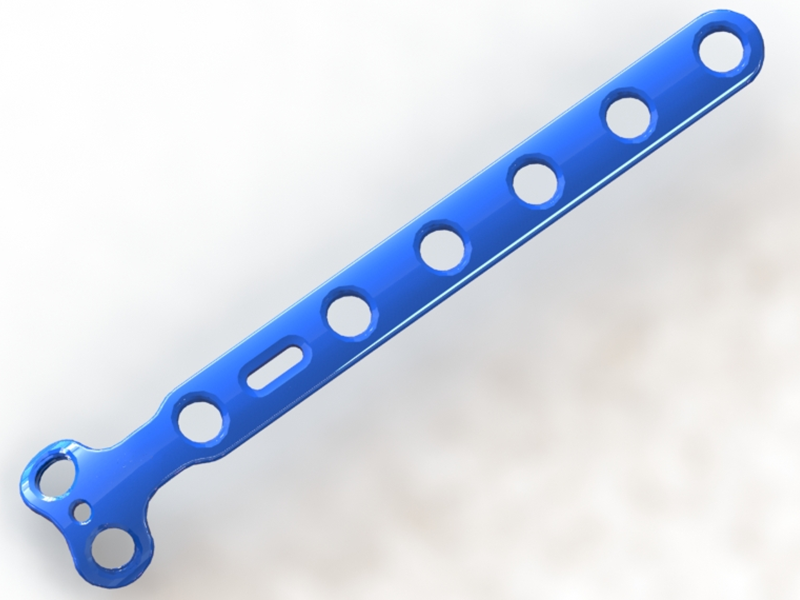

The SurgTech Trauma System is available in a wide range of sizes: 36-76mm L / 2*2, 2*3, 2*4, 2*6 hole / 1.2mm t / 7.5mm w.
The features that deserve special attention are:
Features

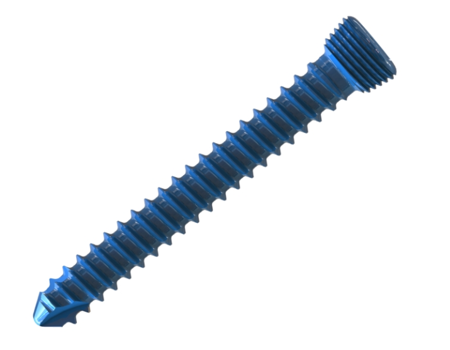

  • 3.5 Marching Locking Screw
  • Screw Characteristics I
  • Screw Characteristics II
  • Screw Characteristics III
  • Screw Characteristics IV
  • Screw Characteristics V
  • Surface Polishing and Arc Design
  • High Versatility of Screw
  • Titanium Alloy Material
    Low notch design, greatly reduce the height of screw protruding plate surface.
    Hexalobular internal design, greatly reduce the risk of sliding wire.
    Tapered head and three-thread design helps ensure that the screw head is aligned to the plate hole.
    Pole double thread, self tapping slot design, easy to screw in, save operation time.
    A variety of locking screw diameters provide foot and ankle doctors with a wide variety of screw options.
    The high-precision polishing of the surface and the design of the circular arc greatly reduce the irritation of the inner implant to the soft tissue.
    All threaded holes are equipped with 2.7mm, 3.0mm, 3.5mm locking screw and 3.5mm non-locking screw.
    High strength titanium alloy with reduced thickness and lower cutting edge.


Materials: TC20     Full Name: Ti6Al7Nb

It is a new type of implant material with high technology content and high economic value. Standards implemented in different countries and regions include: ISO5832-11, ASTM F1295, GB/T13810, GB 23102.

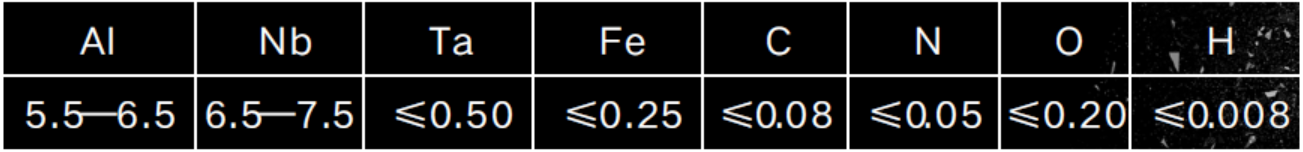

Chemical Composition


TC20 VS TC4


Differences between TC20 and TC4
TC20 (Ti6Al7Nb) and TC4(Ti-6Al-4V) belong to alpha + beta-titanium alloy. The main difference is that TC20 uses the non-toxic element niobium (Nb) instead of the toxic element vanadium (V) in TC4.


Advantage of Difference

1. The potential cytotoxicity of element V is eliminated and the material has good cytocompatibility.
2. Nb element can promote the density increase of passivation film formed by surface oxidation of ti-6al-7nb alloy, so that the material has good corrosion resistance.
3. The oxides and hydroxides of titanium, aluminum and niobium have reached saturation, and the dissolved metals in the implants will not be ionized or transferred in the body, making them have good biocompatibility.
Instruments
Instruments
  • A Full Set of Tools Layer I
  • A Full Set of Tools Layer II

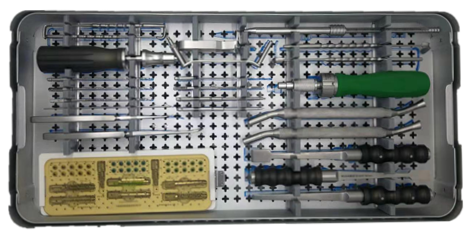

    1. Screw Holder; 2. Lever; 3. Guide Pin φ1.5x150; 4. Depth Gauge; 5. Double Head Guide φ2.5/φ3.5; 6. Screwdriver (T15); 7. Screwdriver (T8); 8. Screw Tap HA3.5; 9. Torque Wrench 2.0N.m; 10. Ratchet Wrench; 11. Drill φ2.0x120; 12. Drill φ2.3x120; 13. Drill φ2.7x120; 14. Drill φ2.5x120; 15. Guide Bush φ2.7; 16. Guide Bush φ2.3; 17. Guide Bush φ2.0; 18. Lock Drill Sleeve With Scale φ2.7; 19. Lock Drill Sleeve With Scale φ2.3; 20. Lock Drill Sleeve With Scale φ2.0; 21. Guide Pin Drill Sleeve;

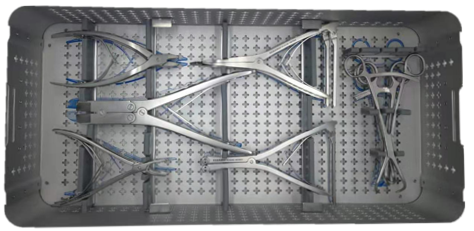

    1. Plate Holder; 2. Bending Reset Forceps; 3. Shearing Forceps; 4. Opening forceps type I; 5. Opening forceps type II; 6. Opening forceps Type III; 7. Bone Rongeur  Type I; 8. Pointed Flat-mouth Pliers; 9. Pointed Reduction Pliers;
Indication
